lng storage tank

First, fixed tank series

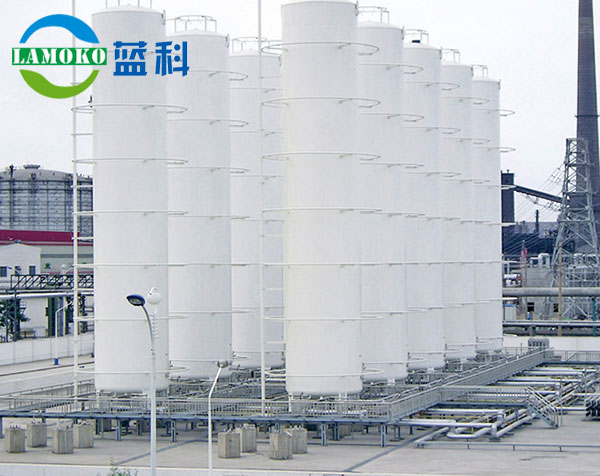

1 、 cryogenic liquid vacuum insulated storage tank

Adiabatic method: vacuum powder insulation, multilayer winding insulation

Volume: 2 M M fand fand ~350

Working pressure: 0.2MPa

Medium: LOX, LIN, LAr, LNG, LCO2, LC2H4, LH2 and so on

Type: vertical and horizontal

Technical features: more reliable structure design, more reasonable product configuration.

2. Small (low temperature tank type gas supply module)

Adiabatic method: high vacuum multilayer winding insulation

Volume: 1M, 2M, M 3 fand fand, fand fand 5M

Working pressure: MPa = 1.6, MPa = 2.8, 3.5MPa

Medium: LOX, LIN, LAr, LNG, LCO2 and so on

Type: vertical (forklift truck can be used)

Some technical features:

Is safe, easy to use, let the gas (liquid) small gas supply more widely accessible storage and supply module;

A small set of centralized gas supply equipment tanks, turbocharger, carburetor and piping system assembly (turbocharger, carburetor with internal and external two types);

Is especially suitable for cutting, welding, laboratory, fuel systems and other gas users need not great;

Two. Large cryogenic liquid tank Large-scale cryogenic liquid storage tank

1. Large atmospheric pressure cryogenic liquid storage tank

Referred to as the atmospheric tank, the main storage device from the liquefied (ASU) or to the cryogenic liquid tank, the design and manufacture of pressure tank is related to the station's function and safety, is the main equipment of the station.

Adiabatic mode: double wall powder stacking insulation

Volume: 200 M M fand fand ~30000

Working pressure: 10KPa~50KPa

Medium: LNG, LOX, LIN, LAr and so on

Some technical features:

Display material: slot the main component material by 06Cr19Ni10, outside the tank with high quality carbon steel plate;

Good insulation properties, the bottom of the tank and sandwich materials and processing technology to ensure good heat insulation performance.The overall good thermal insulation performance and low daily evaporation rate;

Display system technology: advanced technology system, including safety exhaust system, process piping system, temperature control system，And so on, equipment quality assurance.

2 、 cryogenic liquid tank

Adiabatic mode: double wall powder stacking insulation

Volume: 300 M M fand fand ~3000

Working pressure: 0.4MPa~1.6MPa

Medium: LNG, LOX, LIN, LAr and so on

Some technical features:

By sub tank: made of high quality stainless steel, can be divided into two groups at the same time, meet the liquid discharge requirements, while the sub tank two safety valve safety discharge device;

By sub tank system: each sub tank configuration on the pressure and water level indicator and remote monitoring system;

Mother: set outside the tank tank by breathing valve and emergency relief device, ensure the safe and reliable equipment;

By dissecting control: sandwich filled with dry nitrogen to maintain a positive pressure to moisture, and self regulating valve to control the constant pressure in the interlayer;

By using the advanced design and innovative technology, can meet the diverse needs of customers.
